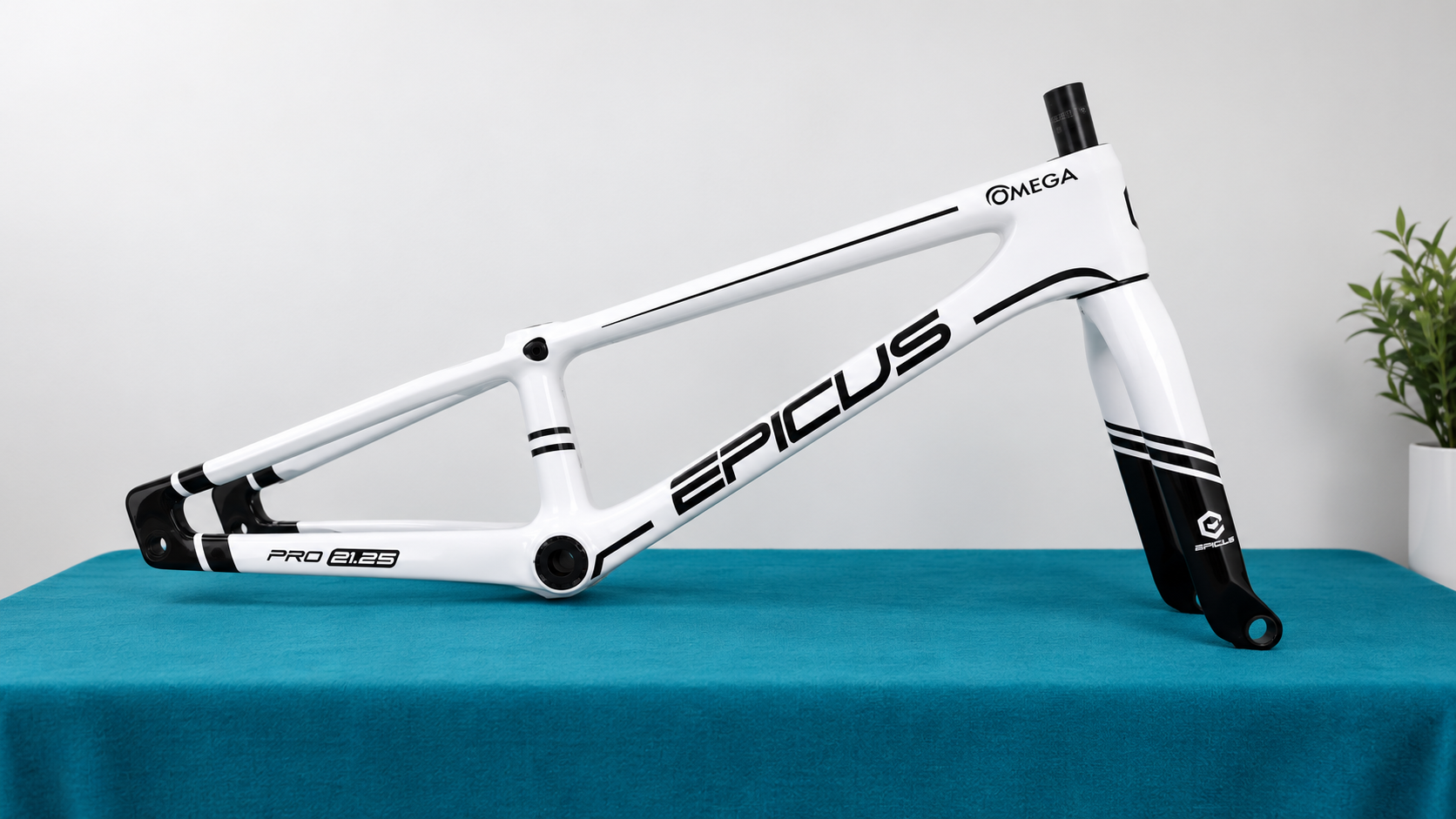

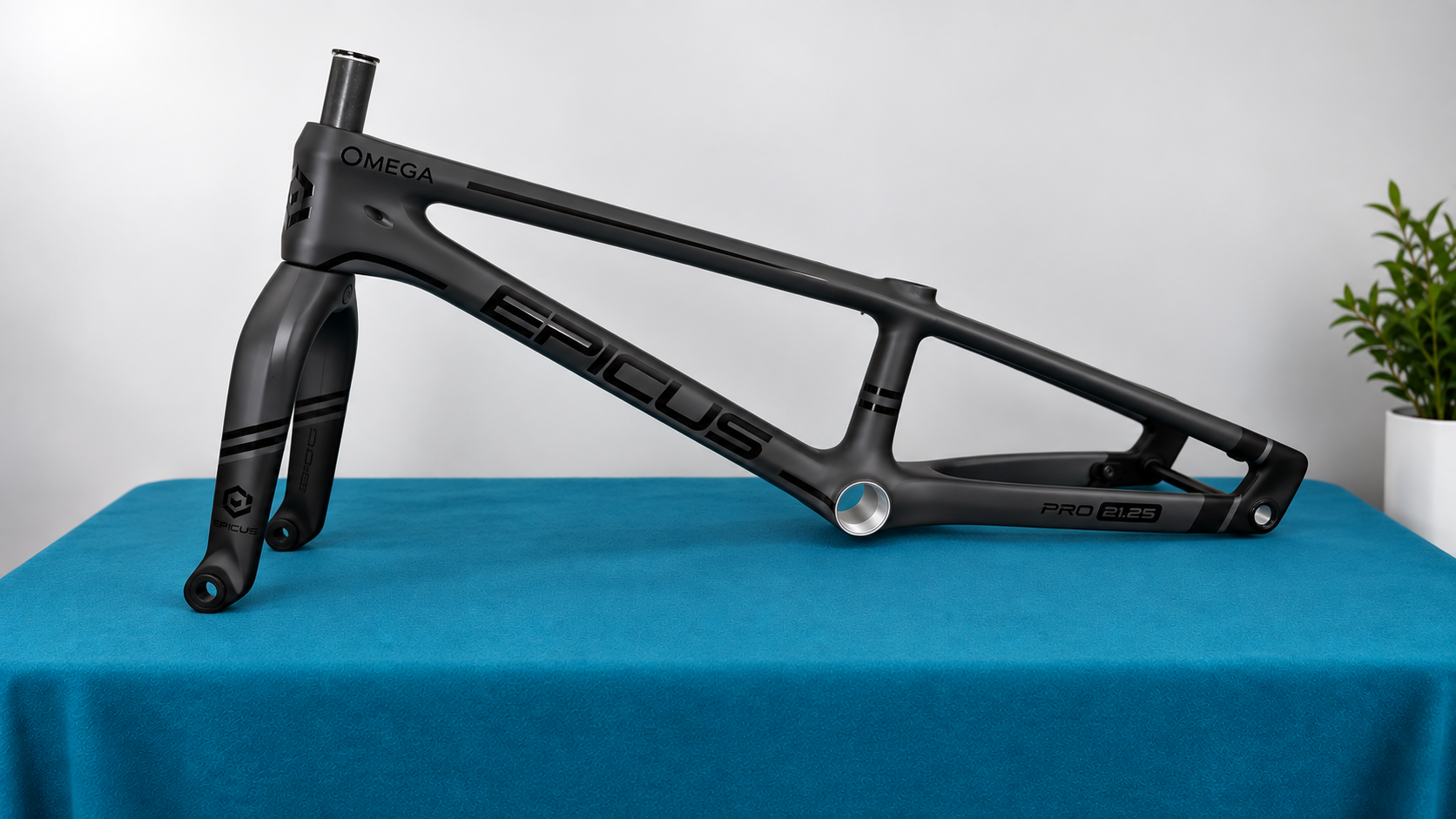

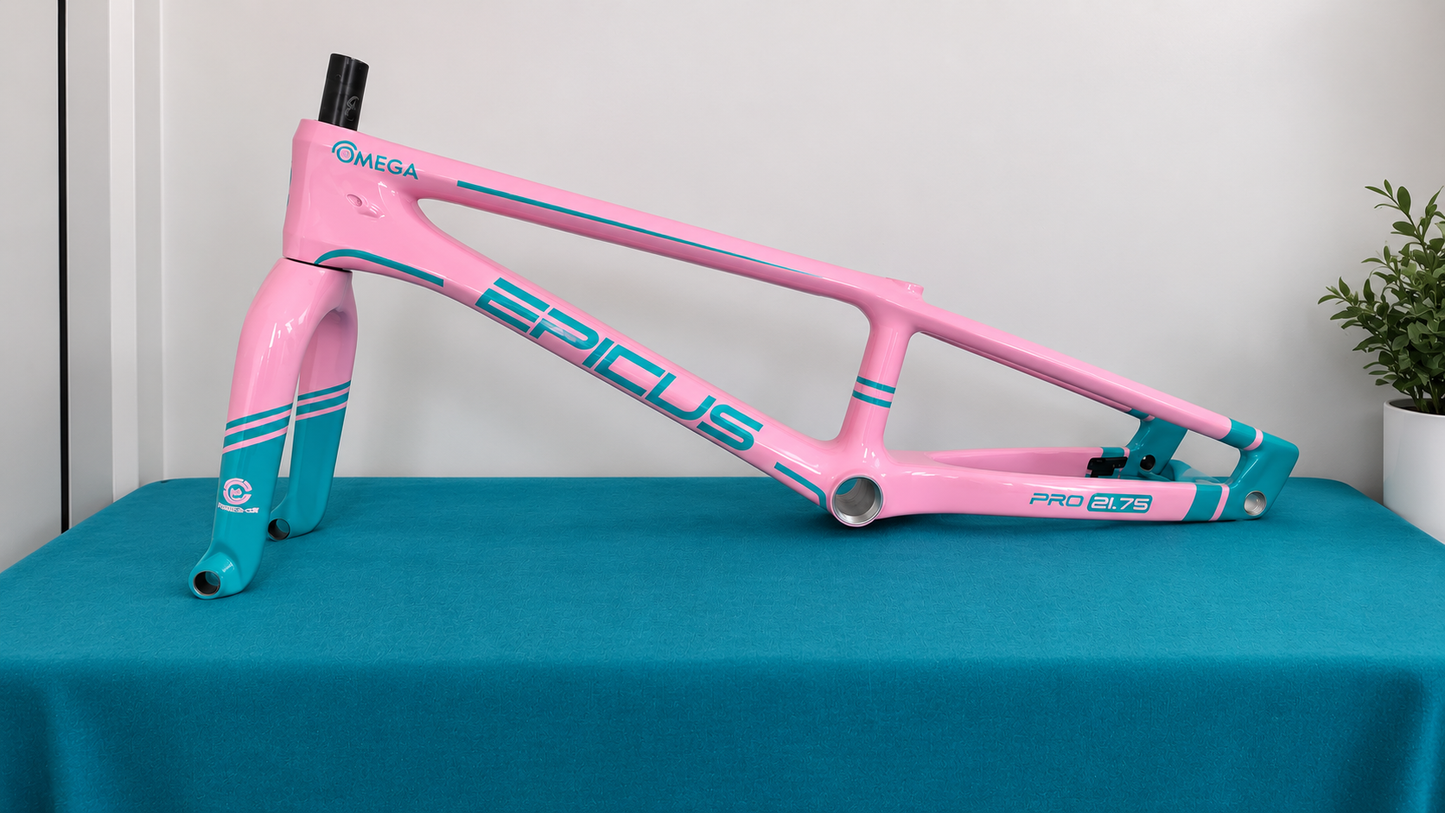

EPICUS OMEGA Carbon BMX Frame & Fork Package

Built for BMX racing, the EPICUS OMEGA combines high-modulus carbon construction, modern race geometry and a fully integrated design to create a stiff, responsive and clean race platform.

Developed and tested over two years with international Elite rider Michele Tomizioli, the Omega has been designed around efficient power transfer, stability at speed and precise handling through technical sections.

COMPLETE PACKAGE — $2,399 AUD

The Omega comes as a complete frame package, including the hard-to-source T47 bottom bracket, so you don't have to track down the correct BB before starting your build.

Package includes:

• EPICUS OMEGA Carbon Frame
• EPICUS Carbon Fork
• T47 85.5mm Bottom Bracket
• EPICUS Integrated Chain Tensioners

The correct T47 bottom bracket is included with your frame package and ready for your build.

FRAME FEATURES

• High-modulus Toray T700 + T800 UD carbon fibre
• Tapered 1-1/8" to 1.5" head tube
• Wide T47 85.5mm bottom bracket system on applicable sizes
• T47 bottom bracket included
• Fixed 15mm rear dropouts
• CNC-machined 7005 aluminium 15mm rear axle
• EPICUS integrated chain tensioner system
• Hidden integrated seat clamp
• Internal brake hose routing
• Flat-mount rear disc brake system
• Designed for a 120mm rear rotor
• Derailleur ready
• Compatible with OS wheel setups

FIXED CHAINSTAY SYSTEM

The Omega uses EPICUS' solid chainstay and fixed 15mm dropout design.

Unlike a traditional sliding dropout system, the rear wheel position remains fixed, meaning your chainstay length and frame geometry stay consistent regardless of the gearing you run.

It also makes rear-wheel installation simple, straight and repeatable.

RACE-DEVELOPED GEOMETRY

The Omega has been designed with a lower rider position and centre of gravity to provide increased stability at speed and through corners.

A 74° head tube angle combined with a 24mm fork offset provides a precise and responsive front end through technical sections while maintaining stability when the speed picks up.

Recommended rear tyre configurations include:

Pro – Pro XXL: 20 × 1.75
Expert XL: 20 × 1-3/8

ADVANCED CARBON CONSTRUCTION

The Omega is manufactured using Toray T700 + T800 high-modulus UD carbon fibre and a dedicated moulding process.

EPICUS uses EPS and PU internal moulding techniques to produce a smoother internal carbon structure with reduced unnecessary fibre overlap.

The result is a carbon structure engineered to balance stiffness, weight and structural consistency for BMX racing.

CLEAN, INTEGRATED DESIGN

A lot of work has gone into keeping the Omega clean and functional.

The frame features a hidden integrated seat clamp, internally routed hydraulic brake hose, integrated chain tensioners and a flat-mount rear brake system.

The hydraulic hose exits internally near the left seat stay for a clean connection to the rear brake caliper.

TESTED FOR BMX RACING

EPICUS frames undergo extensive impact, fatigue and stiffness testing designed to replicate the forces experienced during BMX racing.

Testing includes:

• Chainstay and seatstay impact testing
• Frame impact testing
• Bottom bracket fatigue testing under pedalling forces
• Horizontal fatigue testing
• Vertical fatigue testing
• Ultimate stiffness testing through to structural failure

SIZES

Available in:

Expert | Pro | Pro XL | Pro XXL | Pro XXXL

WHAT YOU GET FOR $2,399

You're not just buying a carbon frame.

You're getting the Omega Carbon Frame, matching EPICUS Carbon Fork, integrated chain tensioners and the correct T47 bottom bracket as one package.

That means no trying to source a difficult-to-find T47 BB after the frame arrives — it's included and ready for your build.

If your preferred size or colour is showing as sold out, contact The Bike Kids and we'll check incoming stock and special-order availability.
