Frame & Fork carbon "SR71-BLACKBIRD"- PRO 4XL - 22.5" AUSTRALIAN STOCK

Frame & Fork carbon "SR71-BLACKBIRD"- PRO 4XL - 22.5" AUSTRALIAN STOCK

$3,600.00 AUD
$3,600.00 AUD
Sale Sold out
Taxes included.
Frame & Fork carbon "SR71-BLACKBIRD" 4xl

Frame & Fork carbon "SR71-BLACKBIRD"- PRO 4XL - 22"  AUSTRALIAN STOCK


Sold With the Frame

  • Chain tensioner
  • Quick-release seat clamp
  • Disc brake bracket
  • Plate for 10mm screw-on axle



SR71-BLACKBIRD – Carbon excellence without compromise

Designed with Japanese Toray T700 carbon fiber and reinforced with T1000 in critical areas, the SR71-BLACKBIRD frame delivers exceptional stiffness while maintaining a controlled weight.

The combination of 3K woven carbon and unidirectional UD carbon creates a structure that is ultra-rigid where performance demands it, and intentionally more flexible in strategic zones to absorb impacts, reduce vibrations, and limit the risk of sudden failure.
This controlled flexibility enhances riding comfort and significantly increases long-term durability.

Advanced fiber orientation at 0° / 20° / 45°, with up to 9 reinforcement layers, ensures stability, precision, and reliability even under extreme loads.

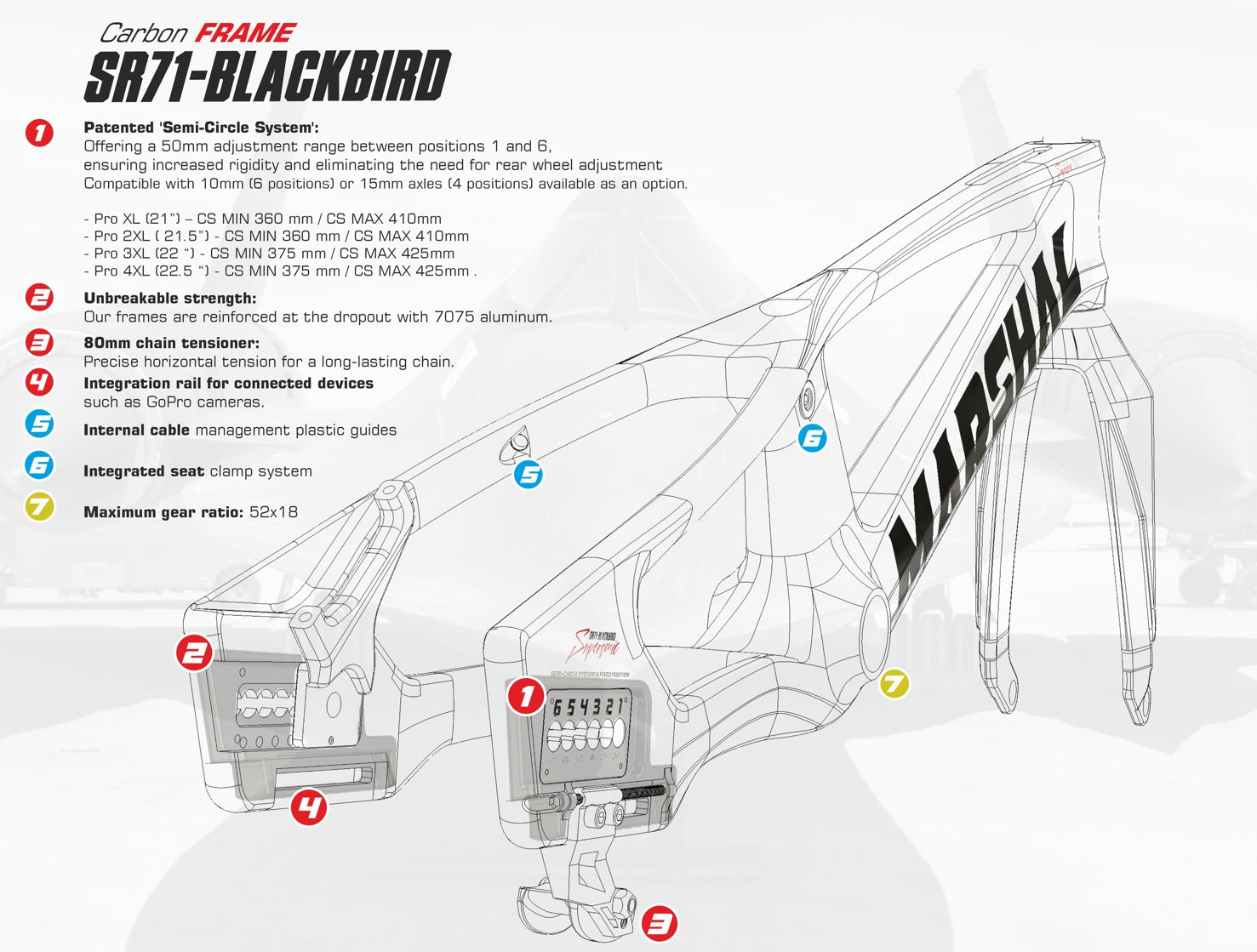

The frame features a patented half-moon rear dropout system, providing:

  • perfect wheel alignment,
  • superior lateral stiffness,
  • fast and secure wheel removal,
  • precise and consistent chain tension

Co-molded aluminum inserts guarantee long-lasting mechanical accuracy.

Lighter. Stiffer. Smarter.

A frame engineered for top-level performance.

Key Features

  • Patented ‘Semi-Circle System’: Provides a 50mm adjustment range across 6 positions for increased rigidity and precise setup without needing to adjust the rear wheel (4 positions in 10mm for Junior and Expert sizes)

  • Axle Compatibility: Works with 10mm (6 positions) or 15mm axles (4 positions – not compatible for junior and expert sizes). Available as an option.

  • Unbreakable Strength: The frame is reinforced at the dropout with 7075 aluminum for exceptional durability.

  • New Chain Tensioner: Ensures precise horizontal tension for a long-lasting chain.

  • Internal Cable Management: Features plastic guides for a clean and secure cable routing.

  • Maximum Gear Ratio: 52×18

Sold With the Frame

  • Chain tensioner
  • Quick-release seat clamp
  • Disc brake bracket
  • Plate for 10mm screw-on axle

Option

  • Plate for 15mm screw-on axle
  • Bottom Bracket Pressfit 41mm
  • Headset integrated 1-1/8 - 1.5



 Weight frame PRO XL =  1,560 Kg (+/- 2%) | 3.307 lbs (+/- 2%)
Tailles 20″ RIDER AREA Min TT CS min CS max BBH SA HA OD  SPL SP SIZE HT BB Type
Junior light 18.8″ 478 mm 320 mm 352 mm 276 mm 70° 73° intégré conique OD 1-1/8″ – 1,5″ 182 mm 27,2 mm 115mm PRESSFIT
Expert + 19.7″ 500 mm 320 mm 352 mm 276 mm 70° 73° intégré conique OD 1-1/8″ – 1,5″ 182 mm 27,2 mm 115mm PRESSFIT
Pro 20.5″ 520,7 mm 360 mm 410 mm 11,5 292 mm 72,5° 74° intégré conique OD 1-1/8″ – 1,5″ 175mm 27,2 mm 120mm PRESSFIT
Pro XL 948 mm 21″ 533,5 mm 360 mm 410 mm 11,5 292 mm 72,5° 74° intégré conique OD 1-1/8″ – 1,5″ 175mm 27,2 mm 120mm PRESSFIT
Pro XXL 961 mm 21,5″ 546 mm 360 mm 410 mm 11,5 292 mm 72,5° 74° intégré conique OD 1-1/8″ – 1,5″ 175mm 27,2 mm 120mm PRESSFIT
Pro XXXL 989 mm 22″ 558 mm 375 mm 425 mm 11,5 292 mm 72,5° 74° intégré conique OD 1-1/8″ – 1,5″ 175mm 27,2 mm 120mm PRESSFIT
Pro XXXXL 1002 mm 22,5″ 570 mm 375 mm 425 mm 11,5 292 mm 72,5° 74° intégré conique OD 1-1/8″ – 1,5″ 175mm 27,2 mm 120mm PRESSFIT
Tailles 24″ RIDER AREA Min TT CS min CS min BBH SA HA OD  SPL SP SIZE HT BB Type
Cruiser 956 mm 21,25″ 540 mm 380 mm 430 mm 12 305 mm 69,5° 73° intégré conique OD 1-1/8″ – 1,5″ 232 mm 27,2 mm 120mm PRESSFIT
Cruiser XL 974 mm 22″ 558 mm 380 mm 430 mm 12 305 mm 69,5° 73° intégré conique OD 1-1/8″ – 1,5″ 232 mm 27,2 mm 120mm PRESSFIT
